12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable

Brand Name : Fongko

Model Number : SC PATCH CORD

Certification : Rohs, SGS, ISO

Place of Origin : Shenzhen,Guangdong,China

MOQ : 100

Price : Negotiatable

Payment Terms : T/T, Western Union, L/C

Product Name : Fiber Optic Pigtails

Fiber Type : G652D, G657A2, G657A1, OM1 OM2 OM3 OM4,etc

Fiber Counts : Simplex Duplex

Jacket Material : PVC, LSZH

Working temperature : 40 ~+75 0C

Cable Diameter : 3.0mm

Connector : MPO

Contact Now

SM G652D G.657A1 G.657A2 SC Fiber Optic Pigtails 12 Colors Fibre Optical Jumper

Features

Low insertion loss
High return loss
Good exchange ability
Good durability
High temperature stability
100% interferometer measurement
Telcordia GR-326-CORE

Application

Fiber Optic Telecommunications
LAN (Local Area Network
FTTH (Fiber To The Home)
CATV&CCTV
High speed transmission systems
Fiber optic sensing
Specification
Item
Value
Connector
SC APC/UPC
Operating wavelength
1260-1650nm
Fiber type
G652D,G657A2, G657A1, OM1 OM2 OM3 OM4,etc
Cable jacket
LSZH, PVC
Cable type
Simplex, duplex (zipcord), Φ3mm or Φ2mm Φ0.9mm
Cable color
Yellow
Insertion Loss
≤ 0.1dB (Master) ≤ 0.3dB (Standard)
Return Loss
UPC ≥ 55dB, APC ≥ 60dB (typ.65dB)--Single mode;
UPC≥ 35dB (typ.38dB)-Multimode
Operating temperature
-40 ° C to 85 ° C

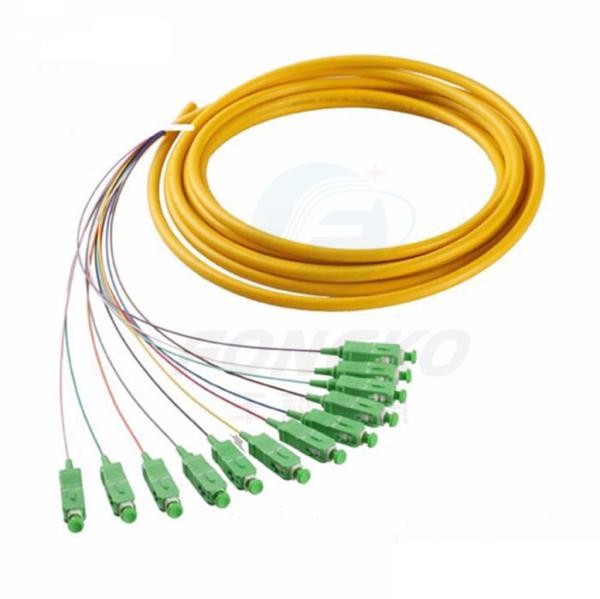

12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable

12F FTTH Fiber Optic Pigtails SC APC UPC SM G.657A1 Fibre Optica Cable
